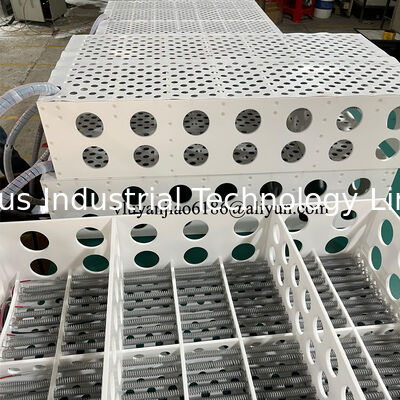

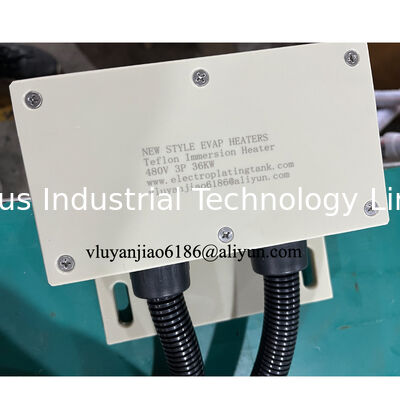

New Style Evap Heaters PTFE Immersion Heater 480V 3Phase 36KW For Heating on the bottom of tank

New Style Evap Heaters PTFE Immersion Heater 480V 3Phase 36KW For Heating On The Bottom Of Tank



New Style Evap Heaters PTFE Immersion Heater 480V 3Phase 36KW For Heating On The Bottom Of Tank​​​ Description :

1. USAGE: Inert to most aqueous acid, alkaline, anodizing and pickling solutions.
2. Outstanding Performance: Low wat density design( 10 watts/square inch, 1.5 w/cm2 ) for long service life.
3.Safety Heater Head: flame retardant head
4. Safety Features: all heaters matched with overheat protection switch with temperature of 95 or 105 degree Celsius or PT100 temperature sensor.
5.Certification:CE & ISO9001:2008
6.Size: 36000 watts.
7.Voltage:380V

Install method
On the bottom of the tank,

Hot Zone should Immersed into liquid.

WHAT IS A PTFE HEATER?

A PTFE heater is a specialized immersion heater that has been sleaved with the highly resistant, beneficial plastic compound known as polytetrafluoroethylene – PTFE for short. PTFE is the most commonly used fluoropolymer and is the material used in the Teflon brand of products by DuPont. PTFE has numerous properties that make it highly sought after for applications that prioritize safety and dependability.

Miraculously, while it was discovered by accident in 1938, DuPont scientists quickly realized PTFE’s properties make it highly resistant to most acids, detergents and solvents. In addition, PTFE has a high melting point and an extreme amount of flexibility, making it ideal protection for immersion heaters that need to be immersed in corrosive and reactive chemicals in many industries. PTFE immersion heaters are sleaved in the PTFE compound, so the metal underneath is not subjected to the corrosive solutions they heat. Using an immersion heater sleaved with PTFE can allow you to heat chemicals rated up to 13 pH. With this particular compound, your immersion heater can spend as much time submerged in corrosive chemical solutions as necessary.

PTFE heaters offer extreme durability against corrosive solutions, but careful practice must be taken when using them. PTFE is a soft material and vulnerable to nicks, cuts or abrasions that could leave the underlying heating element exposed to corrosion. Polypropylene guards can protect the PTFE-sleaved components from damage.

While PTFE is the most versatile plastic in terms of chemical compatibility, it is not compatible with hydrochloric acid.

If you need to heat hydrochloric acid, ask us about our titanium heaters.

FAQ
Q: Where is Surplus located?
A: Our office located in HongKong,Dongguan and Shantou City.Our factory located in Shenzhen.

Q: Can I buy direct?
A: Yes,you can buy from Surplus Directly.

Q: Do you manufacture your products in house?
A: Most of our products are manufactured in-house at our factory.Some accessory items are not.

Q: Can I get the riser on my L-shaped aquaculture heater longer/shorter?
A: Yes.There is no price difference for making a heater with a middle riser,but there maybe a cost adder for a longer riser.

Q: What Third Party Approvals do your products carry(CE?)
A: Almost all of our products are CE compliant.

Q: How late can you ship?
A: Normally 7 days after comfirmed the order.

RELATED SPECIES

METAL IMMERSION HEATER	PTC IMMERSION HEATER	QUARTZ IMMERSION HEATER
METAL HEAT EXCHANGERS	(PFA) HEAT EXCHANGERS	ANODE BASKET
PP TANKS	PP BARRELS	PP BAG FILTERS


OUR FACTORY

ENGINEER OFFICE	TOOLING DEPARTMENT	MACHING 1
MACHING 2	MACHING 3	MACHING 4


Company Advantage

For more than ten years, our company has specialized in the research and development and production of PCB and FPC electroplating equipment, electric heaters, cold heat exchangers, and coating on the surface of electroplating equipment. We have collected advanced technologies and processes at home and abroad for many years. With the practice and experience in the PCB industry, the quality, stability and reliability of the products are among the world's leading positions. Our company has passed ISO9001: 2008 quality management system certification and CQC: CE certification, is in line with the world, implements scientific management, and implements international quality standards.
